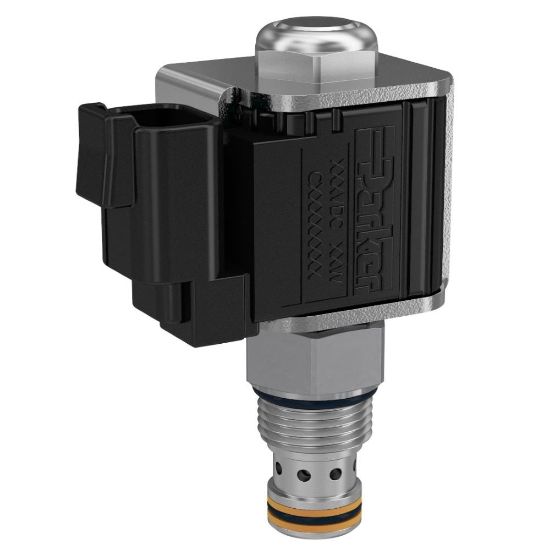

2 Way Spool Type Solenoid Valve - GS022710V

Name: 2 Way Spool Type Solenoid Valve - GS022710V
SKU: GS022710V

Parker’s selection of direct acting 2-way, 2-position spool-type solenoid valves cover a wide range of flows up to 75 lpm (20 gpm) and pressures as high as 350 bar (5000 psi), with both normally-closed and normally-open options available.

Availability:

Backordered

SKU GS022710V

$154.63

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Configuration	Normally Open	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Flow Rate	5 GAL/MIN, 19 L/MIN	Actuation Type	Electrical, Manual
Wire Mesh Screen Included	No	Seal Material	Fluorocarbon
Body Material	n/a	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-26 °C
Function	2-Way	Maximum Operating Pressure	350 bar
Maximum Flow Rate	19 L/min	Flow Rate	19 L/min
Maximum Inlet Pressure Rating	5000 psi	Weight	0.14 lb
Installation Torque	22 lb-ft	Coil Nut Tightening Torque	3 lb-ft
Cavity Size	C09-2	Configuration	Normally Open
Actuation Type	Electrical, Manual	Maximum Operating Temperature	+204 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Operation Type	Solenoid operated, Manually operated	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-15 to +400 °F	Wire Mesh Screen Included	No
Mounting Type	Screw in cartridge valve	Coil Type	1/2" Super Coil
Input Voltage	85% of rated voltage at 72°F (20°C) min	Response Time	50 ms
Leak Rate	82 CC/min @ 3000 PSI (210 BAR) cm3/min	Override Functionality	Non-Detetented

Product resources

Literature and Reference Materials
