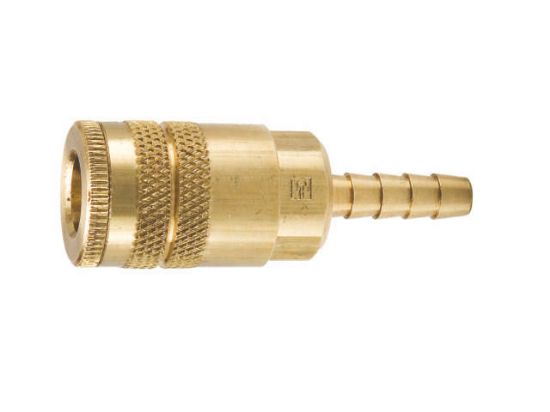

B20-5BN - 20 Series Coupler - Hose Barb

Name: B20-5BN - 20 Series Coupler - Hose Barb
SKU: B20-5BN
Price: 22.47 USD
Availability: InStock

Pneumatic Manual Connect Industrial Interchange

Availability:

160 in stock

Wichita, KS	156
Olivette, MO	4

Partner Available:

2 Limited Stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU B20-5BN

$22.47/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Material	Brass	Pkg Qty/UOM	10 EA
Pkg Qty	10	Inner Diameter	0.375 Inch
Max Pressure	300 PSI (20 bar)	Body Size	1/4 Inch
Parker Group	Fluid Connector	Inch/Metric	Inch
Series	20	Material	Brass
Inner Diameter Inch/mm	Inch	Inner Diameter	0.375 Inch
Parker Division	Quick Coupling	Application	Pneumatic
Quick Coupler Type	Pneumatic Manual Connect	Max Pressure Range	250 to 499 PSI (17 to 34 bar)
Coupler/Nipple/Shell	Coupler	Configuration Type	Hose Barb
Interchange	Industrial Interchange	Body Size	1/4 Inch
