*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

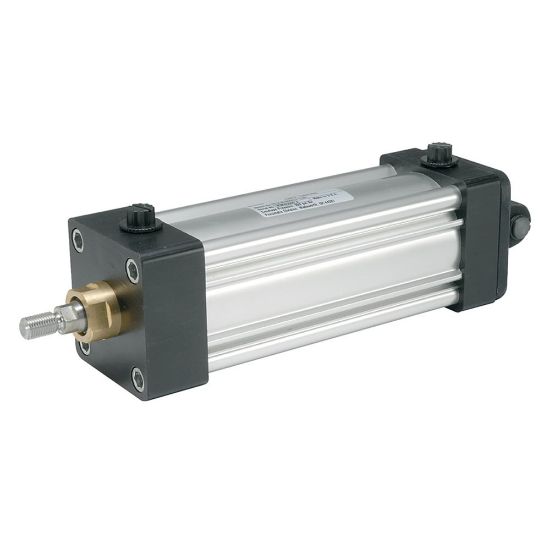

2.00BB4MA2U34A24.00

Manufacturer: Parker Hannifin

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 2.00BB4MA2U34A24.00

$412.94/each

Products specifications

Attribute name	Attribute value
UOM	EA	Filtration Required	40 micron
Stroke Length	24 Inch	Series	4MA
Material	Clear Anodized Aluminum Alloy	Piston Material	Aluminum
Style	Tie Rod, NFPA	Lube Specification	Non Lube Design
Port Size	3/8 Inch	Corrosion Resistant	Yes
Rod Diameter	1 Inch	Filter Media	Filtered Air
Rod Material	Case Hardened, Chrome-Plated Carbon Steel	End Type	Single Rod
Port Type	NPTF	Rod End Style	Male, Small
Bore Size	2 Inch	Bumpers	w/o Bumpers
Max. Pressure	250 psig	Mounting Style Code	BB
Rod Thread Type	UNF	Seal Type	Lipseal
Mounting Style	MP1	Piston No.	3
Max. Temperature Range	165 °F	Magnetic Ring	No
Cushions	Non Cushioned	Rod End Thread	3/4-16
Min. Temperature Range	-10 °F	Seal Material	Nitrile
