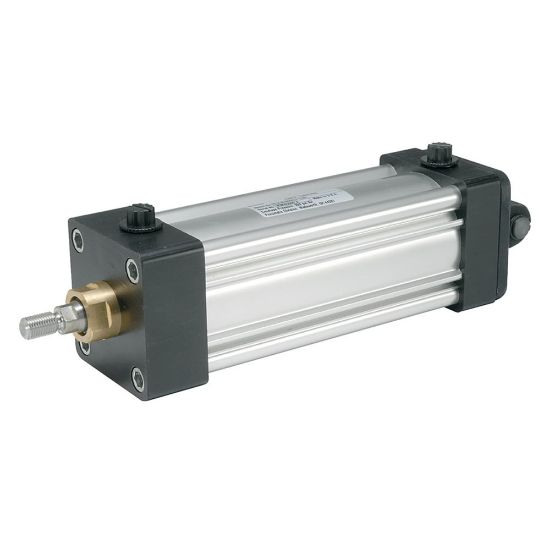

2.00CD4MA3U34AC20.00

Manufacturer: Parker Hannifin

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 2.00CD4MA3U34AC20.00

$470.24/each

Products specifications

Attribute name	Attribute value
UOM	EA	Corrosion Resistant	Yes
Port Size	3/8 Inch	Filtration Required	40 micron
Stroke Length	20 Inch	Series	4MA
Style	Tie Rod, NFPA	Lube Specification	Non Lube Design
Material	Clear Anodized Aluminum Alloy	Piston Material	Aluminum
Seal Material	Nitrile	Min. Temperature Range	-10 °F
Rod End Thread	3/4-16	Piston No.	3
End Type	Single Rod	Port Type	NPTF
Rod Material	Case Hardened, Chrome-Plated Carbon Steel	Rod End Style	Male, Small
Rod Diameter	1 Inch	Magnetic Ring	Yes
Mounting Style	MT1	Filter Media	Filtered Air
Rod Thread Type	UNF	Seal Type	Lipseal
Bore Size	2 Inch	Max. Pressure	250 psig
Bumpers	w/o Bumpers	Max. Temperature Range	165 °F
Mounting Style Code	D	Cushions	Cushioned, Both Ends
