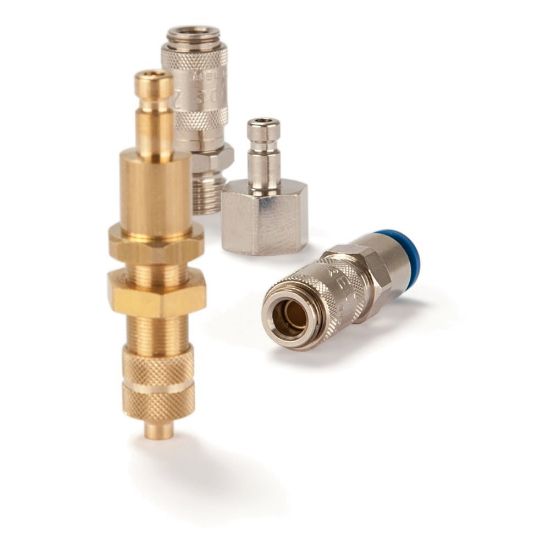

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

20KFTS03MPN

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU 20KFTS03MPN

Products specifications

Attribute name	Attribute value
UOM	EA	Function	Straight-Through
Compatible Fitting	Series 20 Plug	For Fluid Type	Chemical Fluids
Application	Automotive	Materials of Construction	Brass, Nickel-Plated
Flow Rate	1.5 lpm (Water)	Connection Size	3 mm
Length	17 to 52.5 mm	Technology	Fluid & Gas Handling
Shape	Straight	Standard	ATEX
Inside Diameter	3 mm	Operation Type	Sleeve
Sleeve Material	Brass	Product Series	Series 20
Coupling Half	Coupler	Interchange Type	European Profile
Valve Type	Without Valve	Plating Type	Nickel-Plated
Version	Straight-Through	Flow Diameter	2.7 mm (Nominal)
Maximum Operating Temperature	100 °C	Seal Material	NBR
Minimum Operating Temperature	-4 °F
