210313

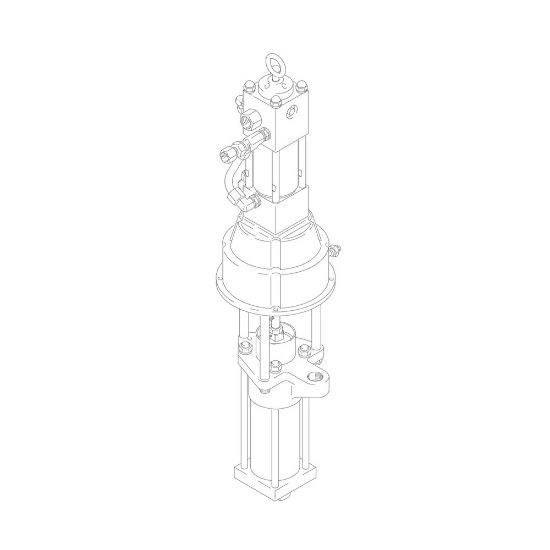

Graco 210313 | Piston Pump | Hydraulic | II Series | 15 GPM Maximum Flow Rate | 2000 psi Maximum Working Pressure | Viscount Model | 2 Inch Fluid Inlet Size
Availability:
Backordered
Estimated Lead Time: 10 days
Partner Available:Backordered
SKU 210313
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The rugged pump lower construction with Severe Duty rods and cylinders reduces downtime and extends the interval between repairs. The simple construction makes service and repair fast and easy. The efficient hydraulic powered piston makes these pumps the ideal choice for factory and outdoor mobile use, even at below freezing temperatures.

Features

  • Clean, quiet operation with no airborne contamination
  • Up to three times more energy efficient than comparable compressed air systems
  • Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
  • Reduce routine maintenance and cut repairs time in half of comparable pump lowers
  • Eliminate downtime without ice build-up

Applications

  • Supply
Products specifications
Attribute nameAttribute value
UOMEAMaximum Hydraulic Fluid Inlet Pressure1500 psi
Maximum Working Pressure2000 psiSeriesII
Fluid Outlet Size1-1/2 InchModelViscount
Fluid Outlet Thread TypeNPTMaximum Intermittent Cycle Rate50 CPM
PortableNoFluid Inlet Thread TypeNPT
Fluid Inlet Size2 Inch
