217580

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 217580

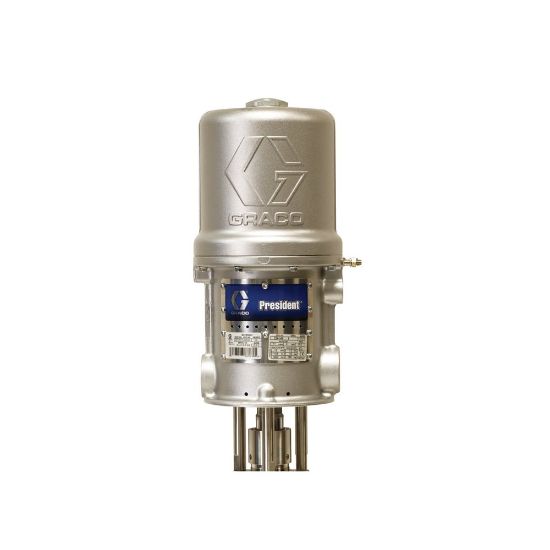

2-ball pneumatic piston pumps for a wide range of applications.

Features

Reliable President air motor designed for low maintenance operation and long life
Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
Stainless steel or carbon steel models available to handle various fluids, including catalyzed materials

Applications

Supply

Products specifications

Attribute name	Attribute value
UOM	EA	Fluid Section Type	2-Ball
Maximum Working Pressure	400 psi	Maximum Continuous Cycle Rate	60 CPM
Seal Material	PTFE;Leather	Maximum Operating Temperature	180 deg F
Fluid Outlet Thread Gender	Female	Air Inlet Size	0.5 Inch
Fluid Outlet Size	1-1/2 Inch	Model	President
Pump Ratio	15:1	Portable	No
Air Inlet Thread Type	NPT	Fluid Outlet Thread Type	NPT
Air Inlet Thread Gender	Female	Maximum Air Inlet Pressure	120 psi
