*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

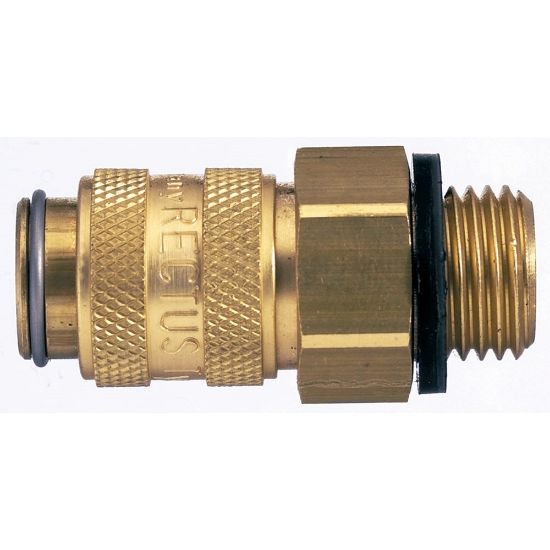

21KAAW13MPN

Availability:	Backordered Estimated Lead Time: 8 days
Partner Available:	Backordered

SKU 21KAAW13MPN

$28.23/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Outside Diameter	16 mm
Compatible Fitting	Series 21 Plug	Standard	RoHS
Application	Food & Beverages	Materials of Construction	Brass, Nickel-Plated
Valve Included	Yes	Operation Type	Sleeve
For Fluid Type	Air	Flow Rate	550 lpm (Air)
Function	Single Shut-Off	Technology	Pneumatics
Shape	Straight	Connection Size	G 1/4 Inch
Version	Single Shut-Off	Sleeve Material	Brass
Seal Material	NBR	Maximum Operating Temperature	100 °C
Hex Size	17 mm	Coupling Half	Coupler
Flow Diameter	5 mm (Nominal)	Interchange Type	European Profile
Minimum Operating Temperature	-4 °F	Plating Type	Nickel-Plated
Product Series	Series 21	Valve Type	Standard Valve
Product Type	Pneumatic Quick Couplings
