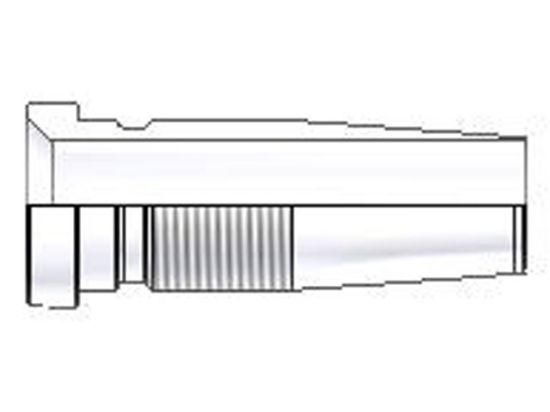

0822-12-12NB - 22 Series 0822

Field Attachable Nipple Female SAE 45° - Swivel - Straight

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	8 in stock

SKU 0822-12-12NB

$35.87/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Material	Brass	Pkg Qty/UOM	5 EA
End 1	3/4 Inch	Pkg Qty	5
Inner Diameter	0.625 Inch	Parker Group	Fluid Connector
Inch/Metric	Inch	Parker Division	Hose Products
Series	22	Material	Brass
End 1	3/4 Inch	End 1 Type	Inch
Inner Diameter	0.625 Inch	Inner Diameter Inch/mm	Inch
Coupler/Nipple/Shell	Nipple	Hose Connection Type	Field Attachable
Configuration Type	Female SAE 45° - Swivel - Straight

Product resources

Hose Fittings (PDF)
Equipment (PDF)
How to Order (PDF)
Technical (PDF)
