*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

237526

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 237526

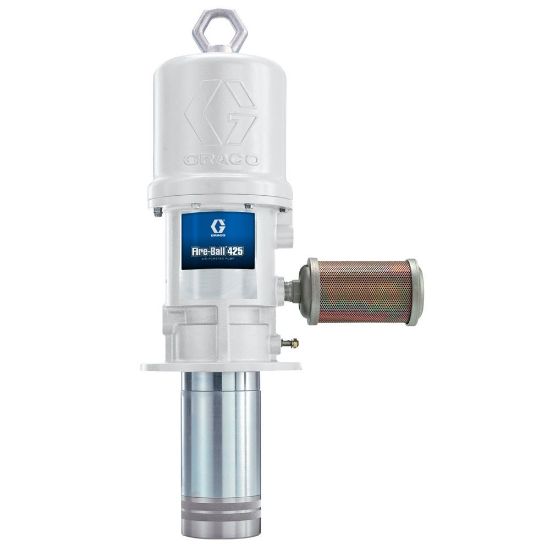

With a large 4.25 inch (107.9 mm) air motor to supply the power you need for long pipe runs and higher volume dispensing, the Fire-Ball 425 delivers field-proven durability for multiple fluid types and exceptional cost savings that are hard to beat!

Features

Durable
Fewer Repairs
Extended Seal Life
Reduce Downtime
Superior Sealing
Reduced Icing
Corrosion-Resistant

Applications

Industrial

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	46 lb
Series	425	Cycles Per Gallon	6
Maximum Working Pressure	540 psi	Fluid Outlet Size	3/4 Inch
Model	Fire-Ball	Fluid Outlet Thread Gender	Female
Air Motor Effective Diameter	4.25 Inch	Pump Ratio	3:1
Fluid Inlet Thread Type	NPT	Air Inlet Size	0.5 Inch
Maximum Continuous Cycle Rate	66 CPM	Fluid Inlet Thread Gender	Female
Maximum Intermittent Cycle Rate	66 CPM	Air Inlet Thread Type	NPT
Maximum Air Inlet Pressure	180 psi	Air Inlet Thread Gender	Female
Sound Pressure Level	82 dB(A)	Fluid Inlet Size	1-1/2 Inch
Fluid Outlet Thread Type	NPT
