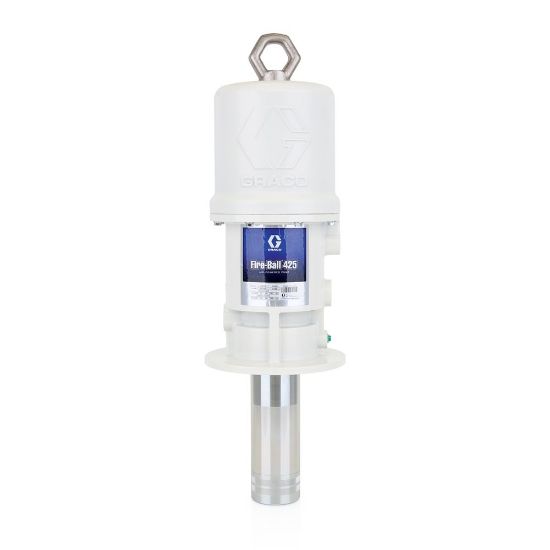

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

238108

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 238108

With a large 4.25 inch (107.9 mm) air motor to supply the power you need for long pipe runs and higher volume dispensing, the Fire-Ball 425 delivers field-proven durability for multiple fluid types and exceptional cost savings that are hard to beat!

Features

Durable
Fewer Repairs
Extended Seal Life
Reduce Downtime
Superior Sealing
Reduced Icing
Corrosion-Resistant

Applications

Industrial

Products specifications

Attribute name	Attribute value
UOM	EA	Cycles Per Gallon	12
Weight	35 lb	Maximum Working Pressure	1100 psi
Series	425	Sound Pressure Level	79.5 dB(A)
Fluid Outlet Thread Type	NPT	Air Inlet Thread Gender	Female
Air Inlet Thread Type	NPT	Maximum Intermittent Cycle Rate	66 CPM
Maximum Air Inlet Pressure	180 psi	Pump Ratio	6:1
Fluid Inlet Thread Type	NPT	Air Motor Effective Diameter	4.25 Inch
Fluid Outlet Thread Gender	Female	Fluid Outlet Size	3/4 Inch
Model	Fire-Ball	Fluid Inlet Size	1-1/2 Inch
Maximum Continuous Cycle Rate	66 CPM	Air Inlet Size	0.5 Inch
Fluid Inlet Thread Gender	Female
