*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

239729

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 239729

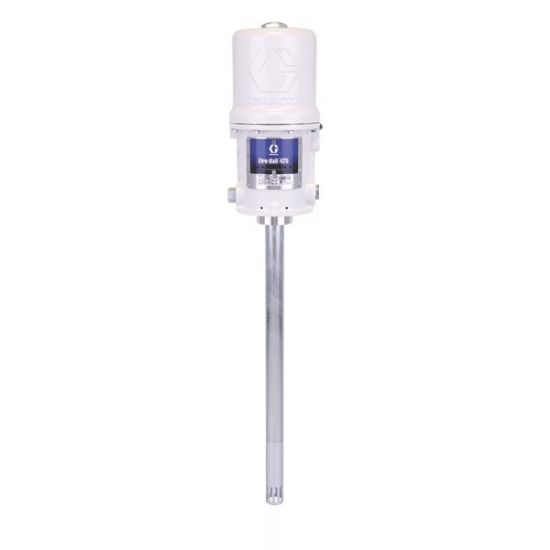

The Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.

Features

Durable
Fewer Repairs
Superior Sealing
Extended Seal Life
Corrosion-Resistant

Applications

Industrial

Products specifications

Attribute name	Attribute value
UOM	EA	Cycles Per Gallon	165
Series	425	Weight	30 lb
Maximum Working Pressure	7500 PSI	Model	Fire-Ball
Fluid Outlet Thread Gender	Female	Sound Pressure Level	80.85 dB(A)
Air Motor Effective Diameter	4.25 Inch	Sound Power Level	94.62 dB(A)
Pump Ratio	75:1	Air Inlet Thread Gender	Female
Throat Seal Type	Wiper	Air Inlet Size	0.5 Inch
Fluid Outlet Size	3/8 Inch	Seal Material	Nitrile Rubber
Maximum Continuous Cycle Rate	60 CPM	Maximum Intermittent Cycle Rate	60 CPM
Air Inlet Thread Type	NPT	Maximum Air Inlet Pressure	100 psi
Fluid Inlet Type	Slotted	Fluid Outlet Thread Type	NPT
