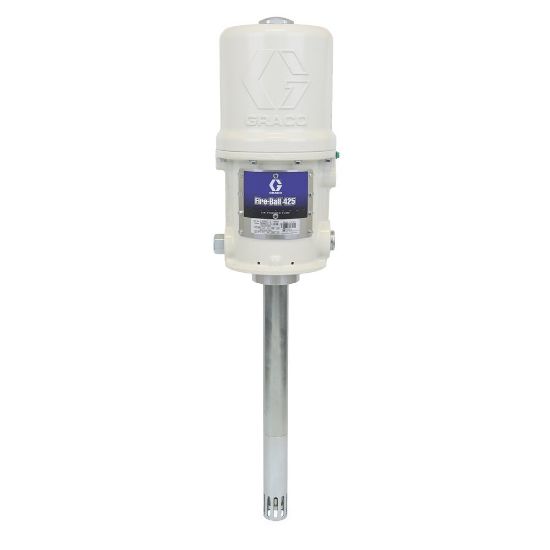

The Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.

Features

Durable
Fewer Repairs
Superior Sealing
Extended Seal Life
Corrosion-Resistant

Applications

Industrial

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	30 lb
Cycles Per Gallon	165	Series	425
Maximum Working Pressure	7500 PSI	Air Motor Effective Diameter	4.25 Inch
Maximum Continuous Cycle Rate	60 CPM	Sound Power Level	94.62 dB(A)
Fluid Outlet Thread Type	NPT	Fluid Outlet Size	3/8 Inch
Seal Material	Nitrile Rubber	Fluid Outlet Thread Gender	Female
Sound Pressure Level	80.85 dB(A)	Model	Fire-Ball
Air Inlet Size	0.5 Inch	Throat Seal Type	Wiper
Pump Ratio	75:1	Maximum Intermittent Cycle Rate	60 CPM
Fluid Inlet Type	Slotted	Air Inlet Thread Type	NPT
Maximum Air Inlet Pressure	100 psi	Air Inlet Thread Gender	Female
