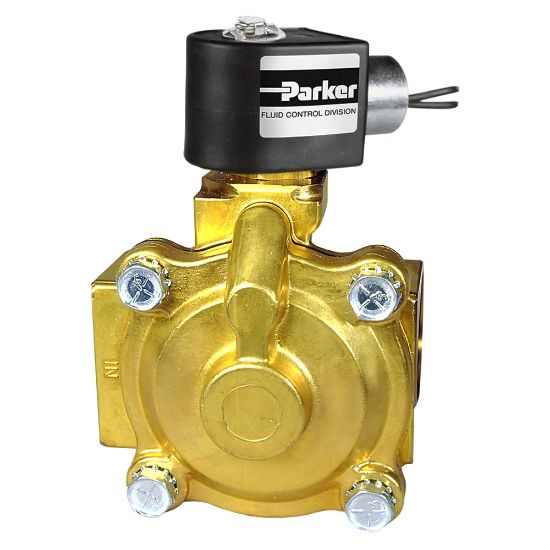

16F24C2164A3F4C80 - 24 Series - General Purpose Solenoid Valves

High Flow General Purpose Solenoid Valves

Availability:	Backordered Estimated Lead Time: 141 days
Partner Available:	Backordered

SKU 16F24C2164A3F4C80

$497.52/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Port Type	NPT	Seal Material	NBR
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Media	General Purpose
Function	Normally Closed	Input Voltage	24.0
Actuation Type	Internally Piloted	Insulation Class	Class F
Power Consumption	11.5	Valve Configuration	2 Way
Ingress Protection Rating	NEMA 4,4X	Maximum Fluid Temperature	150.0
Maximum Ambient Temperature	77.0	Minimum Pressure Differential	5.0
Installation	IOM 7235	Specifications Met	CE - Low Voltage, EMC
Maximum Pressure Differential	125.0	Port Size	1
Orifice Size	1	Main Flow Coefficient	13.0
Preventive Maintenance Kit	16F24C2164A3FR	Port Type	NPT
Body Material	Brass	Port Size	1 inch
Input Voltage	24.0 VDC	Seal Material	NBR
Media	General Purpose	Function	Normally Closed
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Actuation Type	Internally Piloted
Power Consumption	11.5 W	Maximum Fluid Temperature	150.0 °F
Minimum Pressure Differential	5.0 psi	Insulation Class	Class F
Valve Configuration	2 Way	Ingress Protection Rating	NEMA 4,4X
Maximum Ambient Temperature	77.0 °F	Installation	IOM 7235
Specifications Met	CE - Low Voltage, EMC	Maximum Pressure Differential	125.0 psi
Orifice Size	1 inch	Main Flow Coefficient	13.0 Cv
Preventive Maintenance Kit	16F24C2164A3FR
