243305

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 243305

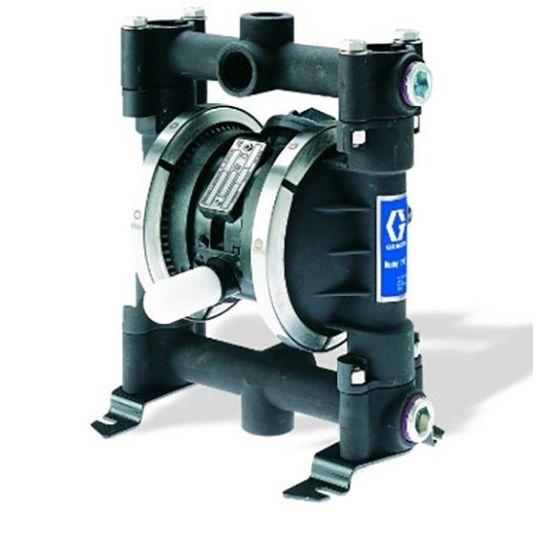

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

Features

Center and end porting options
No mechanical seals which causes fluid leaks or failures
Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Easy-to-service air valve and ball checks
3/4 in (19.05 mm) center- and end-porting
No seals to leak or fail
Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Easy-to-service air valve and ball checks

Applications

Industrial

Products specifications

Attribute name	Attribute value
UOM	EA	Seat Material	Acetal
Ball Material	Santoprene	Series	716
Maximum Flow Rate	16 GPM	Fluid Outlet Thread Gender	Female
Fluid Outlet Size	3/4 Inch	Diaphragm Material	Santoprene
Fluid Inlet Thread Type	NPT	Fluid Inlet Thread Gender	Female
Minimum Operating Temperature	40 deg F	Fluid Inlet Size	3/4 Inch
Maximum Air Consumption	28 SCFM	Air Inlet Thread Type	NPT
Diaphragm Compatible Material	Santoprene	Air Inlet Size	1/4 Inch
Air Inlet Thread Gender	Female	Maximum Operating Temperature	225 deg F
Maximum Solid Size	0.09375 Inch	Model	Husky
Center Section Material	Polypropylene	Maximum Cycle Rate	400 CPM
Fluid Outlet Thread Type	NPT	Manifold Configuration	Center Port
