246367

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 246367

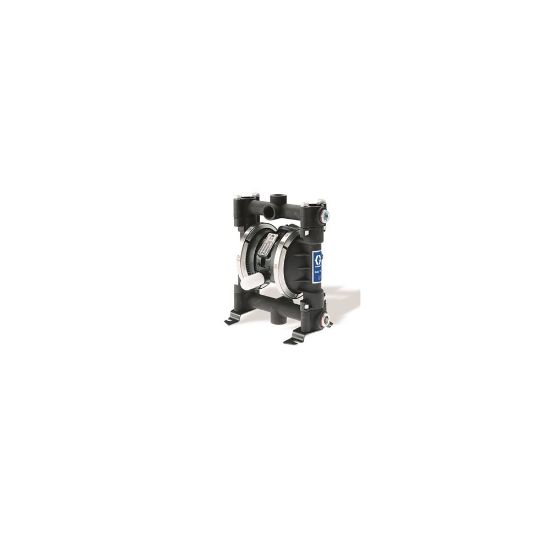

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

Features

Center and end porting options
No mechanical seals which causes fluid leaks or failures
Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Easy-to-service air valve and ball checks
3/4 in (19.05 mm) center- and end-porting
No seals to leak or fail
Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Easy-to-service air valve and ball checks

Products specifications

Attribute name	Attribute value
UOM	EA	Air Exhaust Port Thread Gender	Female
Maximum Working Pressure	100 PSI	Maximum Flow Rate	7.5 GPM
Weight	8.5 lb	Series	716
Fluid Outlet Thread Gender	Female	Air Exhaust Port Thread Type	NPT
Model	Husky	Minimum Operating Temperature	40 deg F
Fluid Inlet Size	3/4 Inch	Fluid Outlet Size	3/4 Inch
Overall Height	10.43 Inch	Maximum Air Consumption	28 SCFM
Maximum Solid Size	0.09375 Inch	Air Inlet Size	1/4 Inch
Air Inlet Thread Gender	Female	Air Exhaust Port Size	3/8 Inch
Maximum Operating Temperature	225 deg F	Fluid Inlet Thread Gender	Female
Maximum Cycle Rate	400 CPM	Air Inlet Thread Type	NPT
