246368

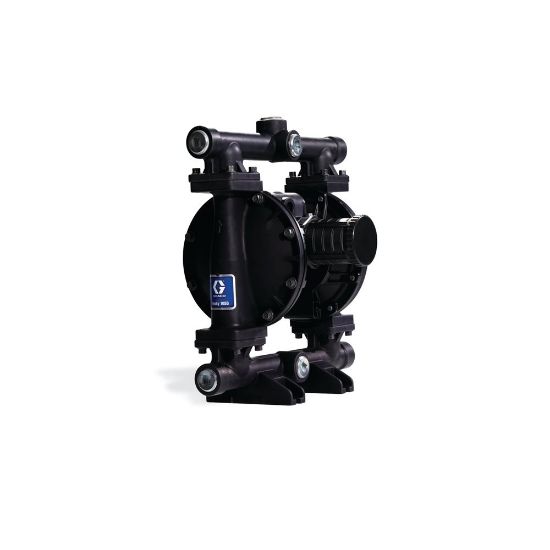

Graco 246368 | Diaphragm Pump | Pneumatic | 1050 Series | 9 GPM Maximum Flow Rate | 125 psi Maximum Working Pressure | Aluminum Material | Husky Model
Availability:
Backordered
Estimated Lead Time: 10 days
Partner Available:Backordered
SKU 246368
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

Features

  • Up to 5x longer diaphragm life for less maintenance and downtime
  • Modular Air Valve - Stall-free, low pulsation operation provides smooth and rapid changeover
  • One-Piece Center Section
  • Four Bolt Joint Design
  • Multiple Ports - Increased number of ports for installation flexibility
  • DataTrakā„¢ (Runaway protection and tracks material usage), Pulse Output (Cycle count capability)
  • Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
  • 30% more efficient than the market leader
  • 20% increase in fluid flow compared to the Husky 1040
Products specifications
Attribute nameAttribute value
UOMEAMaximum Flow Rate9 GPM
Series1050Air Exhaust Port Thread GenderFemale
Maximum Working Pressure125 psiAir Exhaust Port Size3/4 Inch
Air Inlet Thread GenderFemaleMaximum Cycle Rate280 CPM
Maximum Air Consumption67 SCFMFluid Outlet Size1 Inch
Air Inlet Thread TypeNPTFluid Inlet Size1 Inch
Air Exhaust Port Thread TypeNPTModelHusky
Air Inlet Size1/2 InchMaximum Solid Size0.125 Inch
