*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

246780

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 246780

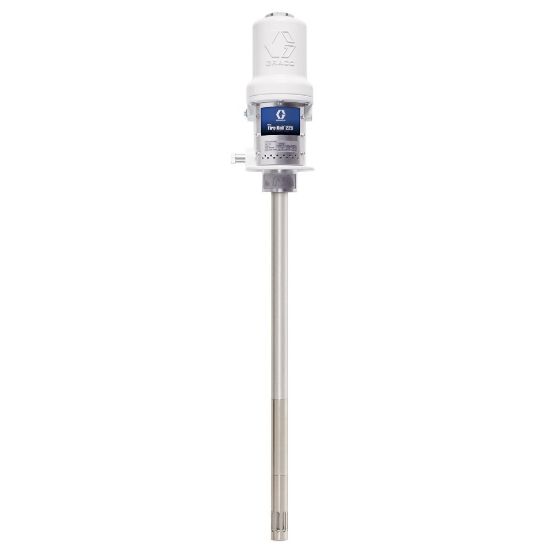

You can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

Features

Durable Casting
Fewer Repairs
Extended Seal Life
Reduce Downtime
Superior Sealing
Reduced Icing
Corrosion-Resistant

Applications

Industrial

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	15 lb
Maximum Working Pressure	8400 psi	Series	225
Fluid Outlet Size	1/4 Inch	Sound Pressure Level	77.8 dB(A)
Air Motor Effective Diameter	2.25 Inch	Air Inlet Size	3/8 Inch
Maximum Continuous Cycle Rate	60 CPM	Model	Mini Fire-Ball
Maximum Intermittent Cycle Rate	100 CPM	Fluid Outlet Thread Gender	Female
Maximum Air Inlet Pressure	140 psi	Pump Ratio	50:1
Air Inlet Thread Type	NPT	Fluid Outlet Thread Type	NPT
Fluid Inlet Type	Slotted	Sound Power Level	85.6 dB(A)
Seal Material	Polyurethane	Air Inlet Thread Gender	Female
