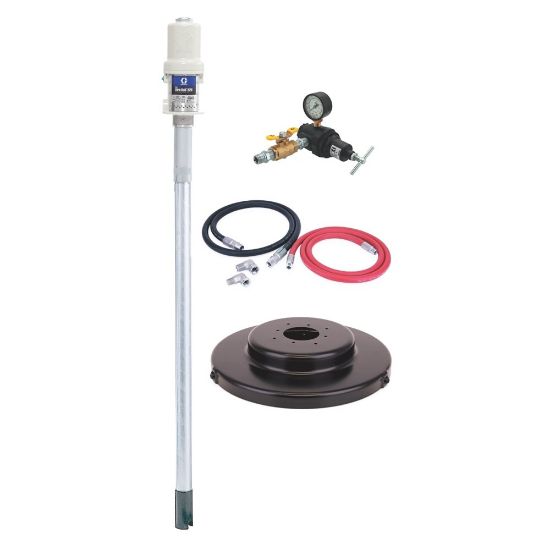

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

246904

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 246904

You can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

Features

Durable
Fewer Repairs
Extended Seal Life
Reduce Downtime
Superior Sealing
Reduced Icing
Corrosion-Resistant

Applications

Industrial

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure	540 psi
Weight	16 lb	Series	225
Cycles Per Gallon	43.5	Maximum Air Inlet Pressure	180 psi
Air Inlet Thread Gender	Female	Air Inlet Thread Type	NPT
Fluid Inlet Size	1-1/2 Inch	Sound Power Level	85.6 dB(A)
Sound Pressure Level	77.8 dB(A)	Air Motor Effective Diameter	2.25 Inch
Fluid Outlet Thread Type	NPT	Air Inlet Size	3/8 Inch
Model	Mini Fire-Ball	Fluid Outlet Thread Gender	Female
Maximum Air Consumption	20 SCFM	Pump Ratio	3:1
Fluid Inlet Thread Type	NPT	Fluid Inlet Thread Gender	Female
Maximum Continuous Cycle Rate	100 CPM	Fluid Outlet Size	1/2 Inch
