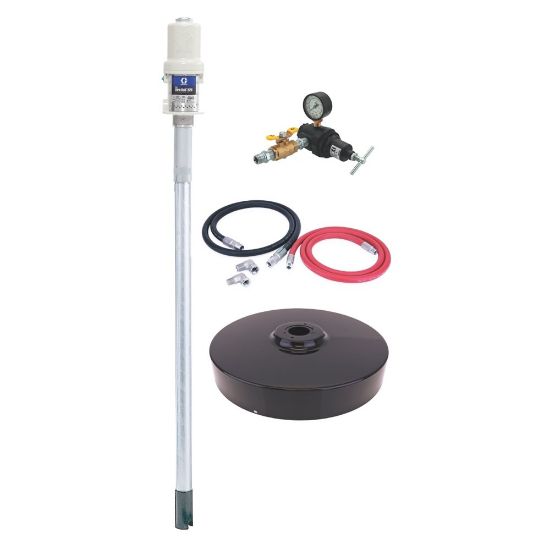

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

246906

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 246906

You can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

Features

Durable
Fewer Repairs
Extended Seal Life
Reduce Downtime
Superior Sealing
Reduced Icing
Corrosion-Resistant

Applications

Industrial

Products specifications

Attribute name	Attribute value
UOM	EA	Cycles Per Gallon	43.5
Series	225	Maximum Working Pressure	540 psi
Weight	16 lb	Fluid Inlet Thread Type	NPT
Pump Ratio	3:1	Air Motor Effective Diameter	2.25 Inch
Sound Pressure Level	77.8 dB(A)	Maximum Continuous Cycle Rate	100 CPM
Maximum Air Consumption	20 SCFM	Fluid Outlet Thread Gender	Female
Model	Mini Fire-Ball	Fluid Outlet Size	1/2 Inch
Air Inlet Thread Gender	Female	Sound Power Level	85.6 dB(A)
Fluid Inlet Size	1-1/2 Inch	Maximum Air Inlet Pressure	180 psi
Fluid Inlet Thread Gender	Female	Fluid Outlet Thread Type	NPT
Air Inlet Size	3/8 Inch	Air Inlet Thread Type	NPT
