SKU 247889

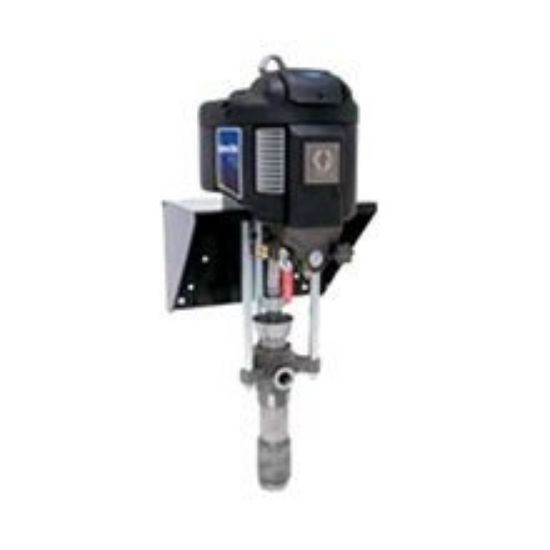

Tested to outperform and outlast all other pumps on the market – with its long-life design and intuitive, easy-to-use controls – the NXT High-Flo pump is the best value for the money. Fewer parts, faster repairs and long-lasting durability.

Features

Optional DataTrak™ Control
NXT Air Motor
Extended Seal Life
Integrated Air Controls
Piston Valve with Floating Piston Seal

Applications

Industrial

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure	450 psi
Fluid Inlet Thread Gender	Female	Fluid Inlet Size	1.5 Inch
Maximum Air Working Pressure	100	Motor Type	Pneumatic
Model	High-Flo	Fluid Outlet Thread Type	NPT
Air Inlet Thread Type	NPT	Fluid Outlet Size	1 Inch
Air Inlet Thread Gender	Female	Mount Type	Wall
Air Inlet Size	0.75 Inch	Maximum Fluid Working Pressure	450 psi
Fluid Inlet Thread Type	NPT	Fluid Outlet Thread Gender	Female
Pump Ratio	4.5:1
