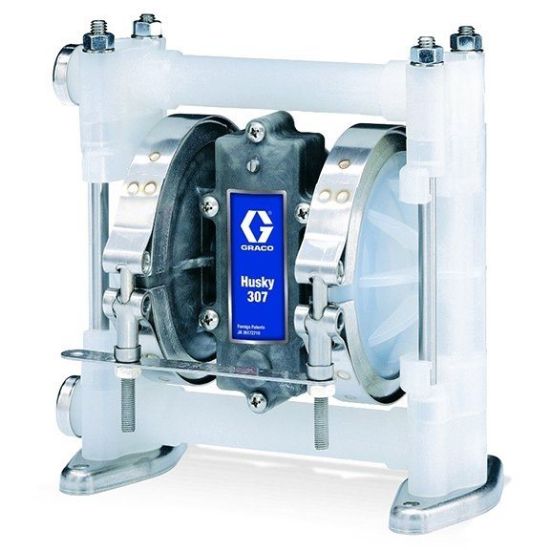

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

248170

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 248170

The Husky 307 air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover.

Features

Quick and easy assembly and disassembly design
Easy to service air valve and ball checks
Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
Split manifold option to pump multiple fluids without mixing
Every pump is tested prior to shipping
3/8 in (9.52 mm) end porting
Delivery up to 7 gpm (26.5 lpm)
Easy-to-service air valve and ball checks

Applications

Industrial

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	4.75 lb
Air Exhaust Port Thread Gender	Female	Ball Material	Buna-N
Maximum Flow Rate	6.5 GPM	Series	307
Fluid Inlet Thread Type	NPT	Maximum Operating Temperature	150 deg F
Diaphragm Compatible Material	Buna	Maximum Cycle Rate	330 CPM
Fluid Outlet Size	3/8 Inch	Air Exhaust Port Thread Type	NPT
Model	Husky	Diaphragm Material	Buna-N
Fluid Inlet Size	3/8 Inch	Fluid Outlet Thread Gender	Female
Fluid Inlet Thread Gender	Female	Maximum Solid Size	0.0625 Inch
Minimum Operating Temperature	40 deg F	Maximum Air Consumption	5.5 SCFM
Fluid Outlet Thread Type	NPT	Manifold Configuration	End Port
Air Exhaust Port Size	3/8 Inch	Air Inlet Thread Gender	Female
Air Inlet Size	1/4 Inch	Air Inlet Thread Type	NPT
