248230

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 248230

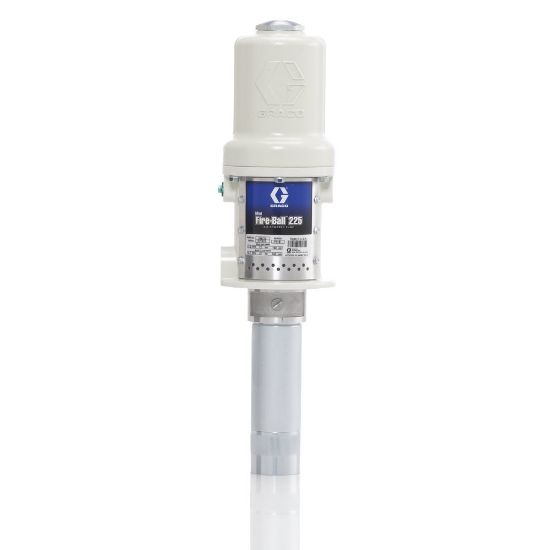

You can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

Features

Durable
Fewer Repairs
Extended Seal Life
Reduce Downtime
Superior Sealing
Reduced Icing
Corrosion-Resistant

Applications

Industrial

Products specifications

Attribute name	Attribute value
UOM	EA	Series	225
Cycles Per Gallon	43.5	Weight	16 lb
Maximum Working Pressure	540 psi	Maximum Air Consumption	20 SCFM
Model	Mini Fire-Ball	Fluid Outlet Thread Gender	Female
Pump Ratio	3:1	Fluid Inlet Thread Type	NPT
Maximum Continuous Cycle Rate	100 CPM	Fluid Outlet Size	1/2 Inch
Maximum Air Inlet Pressure	180 psi	Air Inlet Thread Gender	Female
Sound Power Level	85.6 dB(A)	Fluid Inlet Thread Gender	Female
Fluid Inlet Size	1-1/2 Inch	Air Motor Effective Diameter	2.25 Inch
Sound Pressure Level	77.8 dB(A)	Air Inlet Size	3/8 Inch
Air Inlet Thread Type	NPT	Fluid Outlet Thread Type	NPT
