24B674

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24B674

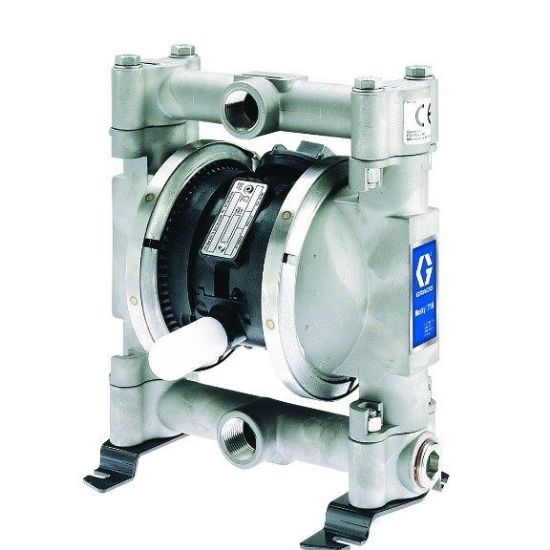

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

Features

Center and end porting options
No mechanical seals which causes fluid leaks or failures
Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Easy-to-service air valve and ball checks
3/4 in (19.05 mm) center- and end-porting
No seals to leak or fail
Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Easy-to-service air valve and ball checks

Applications

Industrial

Products specifications

Attribute name	Attribute value
UOM	EA	Series	716
Maximum Flow Rate	16 GPM	Ball Material	PTFE
Center Section Material	Polypropylene	Fluid Outlet Thread Type	NPT
Maximum Cycle Rate	400 CPM	Manifold Configuration	Center Port
Air Inlet Thread Type	NPT	Fluid Inlet Thread Type	NPT
Fluid Outlet Thread Gender	Female	Model	Husky
Fluid Inlet Size	3/4 Inch	Minimum Operating Temperature	40 deg F
Diaphragm Compatible Material	PTFE	Maximum Air Consumption	28 SCFM
Fluid Outlet Size	3/4 Inch	Diaphragm Material	PTFE/EPDM 2-Piece
Maximum Solid Size	0.09375 Inch	Air Inlet Thread Gender	Female
Air Inlet Size	1/4 Inch	Fluid Inlet Thread Gender	Female
Maximum Operating Temperature	225 deg F
