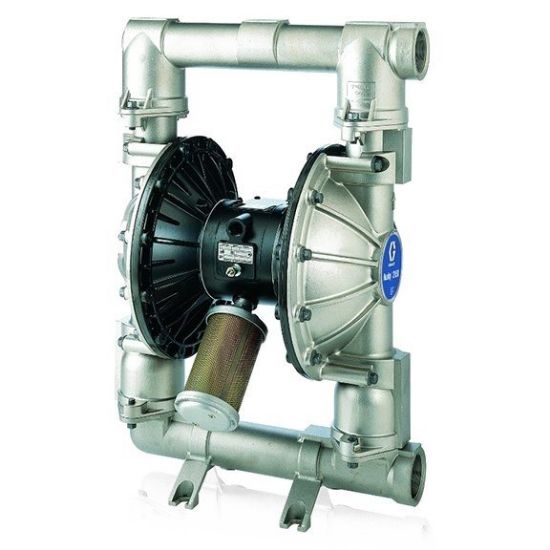

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

24B783

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24B783

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Features

Overall improved efficiency (up to 40% more efficient)
Highest fluid flow rate in its class
Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
Expanded material offering to handle endless applications
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
2 in. (51 mm) ANSI end-porting
Fluid flow up to 150 gpm (568 lpm)
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Epoxy-coated air section for tough environmental conditions
Available in aluminum, 316 stainless steel, ductile iron and polypropylene

Applications

Industrial

Products specifications

Attribute name	Attribute value
UOM	EA	Air Exhaust Port Thread Gender	Female
Ball Material	PTFE	Maximum Flow Rate	150 GPM
Weight	134 lb	Series	2150
Fluid Inlet Thread Gender	Female	Diaphragm Material	PTFE Overmold
Diaphragm Compatible Material	PTFE	Air Inlet Thread Gender	Female
Air Inlet Thread Type	NPT	Air Exhaust Port Size	3/4 Inch
Air Exhaust Port Thread Type	NPT	Model	Husky
Air Inlet Size	1/2 Inch	Fluid Outlet Thread Type	NPT
Manifold Configuration	End Port	Fluid Outlet Thread Gender	Female
Fluid Outlet Size	2 Inch	Maximum Air Consumption	175 SCFM
Maximum Cycle Rate	145 CPM	Maximum Solid Size	0.25 Inch
Fluid Inlet Thread Type	NPT	Fluid Inlet Size	2 Inch
Maximum Operating Temperature	200 deg F
