24G411

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24G411

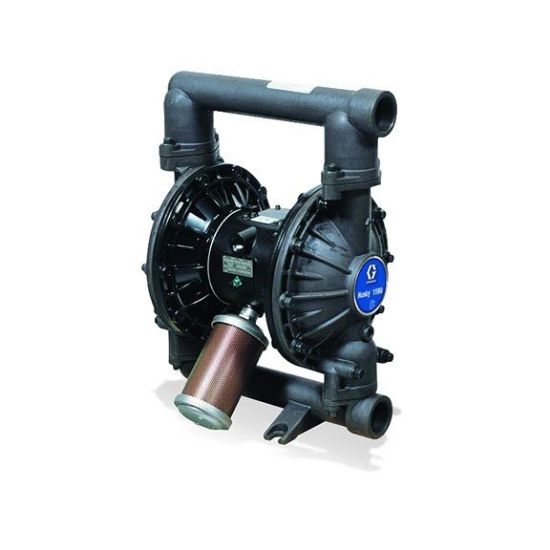

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Features

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
Expanded material offering to handle endless applications
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
Offered in ATEX configuration.
1-1/2 in. (38.1 mm) ANSI end-porting
High flow - 100 gpm (378 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Available in polypropylene, aluminum and stainless steel
Epoxy-coated air section for tough environmental conditions

Applications

Industrial

Products specifications

Attribute name	Attribute value
UOM	EA	Ball Material	PTFE
Series	1590	Weight	33.5 lb
Air Exhaust Port Thread Gender	Female	Seat Material	Stainless Steel
Maximum Flow Rate	100 GPM	Maximum Air Consumption	125 SCFM
Air Inlet Size	1/2 Inch	Maximum Cycle Rate	200 CPM
Model	Husky	Manifold Configuration	End Port
Maximum Solid Size	0.1875 Inch	Fluid Inlet Thread Type	BSPT
Maximum Operating Temperature	150 deg F	Air Exhaust Port Thread Type	NPT
Fluid Outlet Size	1-1/2 Inch	Fluid Outlet Thread Type	BSPT
Diaphragm Compatible Material	PTFE	Air Inlet Thread Gender	Female
Air Inlet Thread Type	NPT	Diaphragm Material	PTFE Overmold
Air Exhaust Port Size	3/4 Inch	Fluid Inlet Size	1-1/2 Inch
