24G585

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24G585

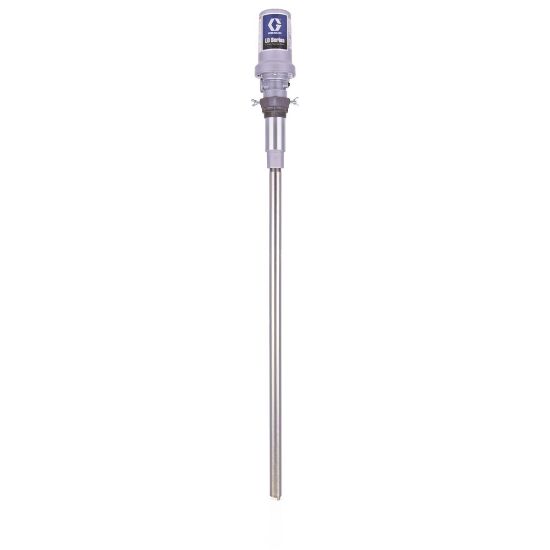

The LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD™ has a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.

Features

Three Inch Air Motor
Innovative Air Valve
Engineered for Durability
Modular Air Valve
Pilot Valve
Adjustable Bung Adapter Included
Built-In Thermal Relief and Inlet Strainer
Includes 1040 liter (275gal) tote down tube

Applications

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure	750 psi
Weight	7 lb	Model	LD
Maximum Air Inlet Pressure	150 PSI	Air Inlet Size	1/4 Inch
Fluid Outlet Size	1/2 Inch	Pump Ratio	3:1
Fluid Inlet Size	1 Inch
