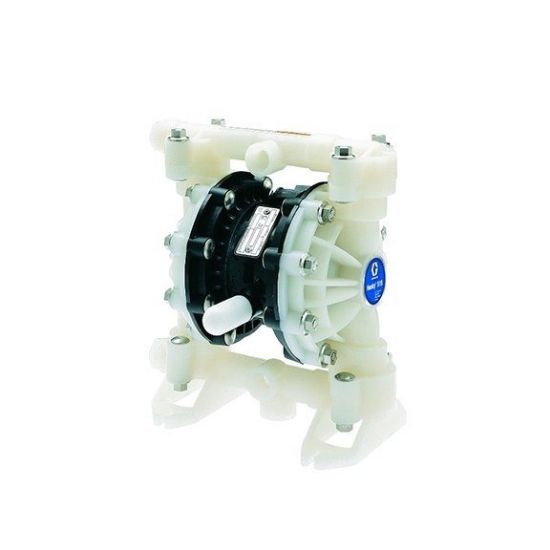

24N095

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24N095

Products specifications

Attribute name	Attribute value
Type	Pneumatic	Ball Material	PTFE
Maximum Flow Rate	15 GPM	Weight	8.5 lb
Series	515	Connection Type	Threaded
Material	PVDF	Air Exhaust Port Thread Gender	Female
Maximum Operating Temperature	225 deg F	Diaphragm Material	PTFE Overmold
Fluid Inlet Thread Gender	Female	Maximum Air Consumption	28 SCFM
Minimum Operating Temperature	40 deg F	Diaphragm Compatible Material	PTFE
Air Inlet Thread Type	NPT	Maximum Cycle Rate	400 CPM
Maximum Solid Size	0.09375 Inch	Air Inlet Thread Gender	Female
Air Exhaust Port Size	3/8 Inch	Air Inlet Size	1/4 Inch
Fluid Inlet Size	1/2 Inch	Air Exhaust Port Thread Type	NPT
Center Section Material	Polypropylene	Model	Husky
Manifold Configuration	Center Port	Fluid Outlet Thread Type	NPT
Fluid Outlet Thread Gender	Female	Fluid Outlet Size	1/2 Inch
Overall Height	10.63 Inch	Fluid Inlet Thread Type	NPT
