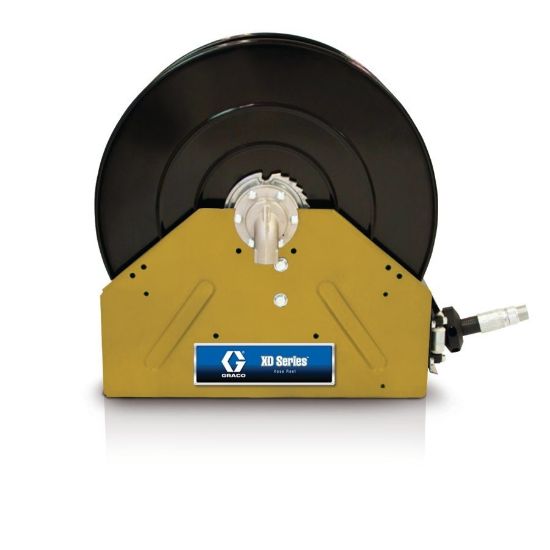

Picture of 24P318

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

24P318

Graco 24P318 | Spring-Rewind Hose Reel | Bare Reel | 40 Series | 50 ft Hose Length | 600 psi Maximum Working Pressure | Yellow Color | XD Model
Availability:
Backordered
Estimated Lead Time: 10 days
Partner Available:Backordered
SKU 24P318
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Graco’s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

Products specifications
Attribute nameAttribute value
UOMEAReel Thread TypeNPT
Maximum Working Pressure600 psiSeries40
Hose Inside Diameter1 InchIncludes HoseNo
Bare Reel1Hose Length50 ft
Overall Height26.13 InchOutlet Size1 Inch
Recommended EnvironmentIndoor;OutdoorOverall Length26.4 Inch
ColorYellowModelXD
Overall Width16.54 InchInlet Size1 Inch
Dry Weight125 lbRecommended Fluid TypeAir;Water;Diesel Fuel;WOE
Inlet Thread TypeNPTFrame TypeBox
