24P320

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24P320

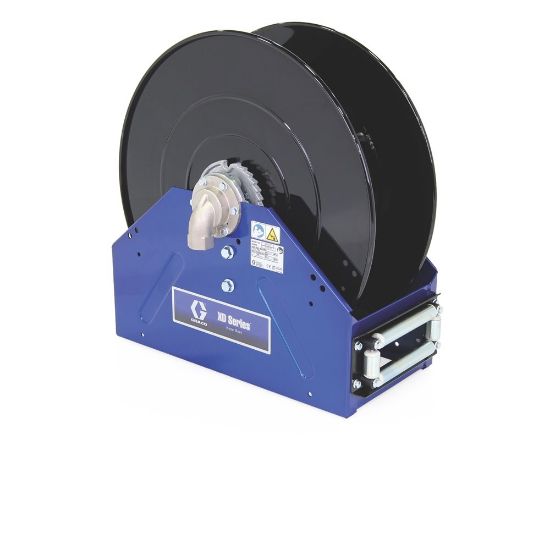

Graco’s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

Products specifications

Attribute name	Attribute value
UOM	EA	Bare Reel	1
Includes Hose	No	Series	40
Maximum Working Pressure	2000 psi	Reel Thread Type	NPT
Hose Inside Diameter	1 Inch	Overall Height	26.13 Inch
Color	Metallic Blue	Outlet Size	1 Inch
Inlet Thread Type	NPT	Model	XD
Overall Length	26.4 Inch	Hose Length	50 ft
Dry Weight	125 lb	Recommended Environment	Indoor;Outdoor
Recommended Fluid Type	Oil	Overall Width	16.54 Inch
Frame Type	Box	Inlet Size	1 Inch
