24P330

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24P330

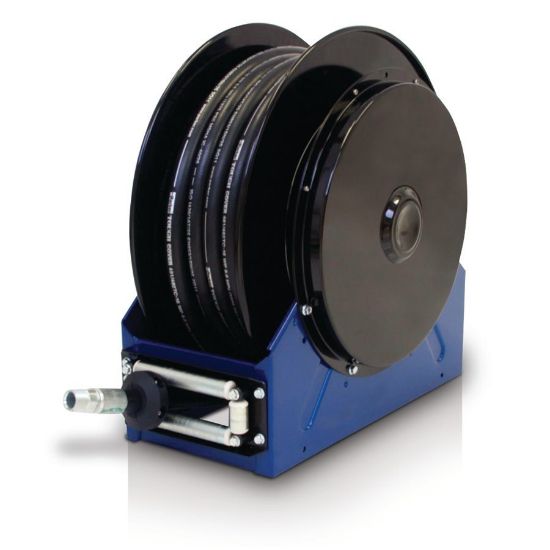

Graco’s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure	300 psi
Hose Inside Diameter	3/4 Inch	Series	40
Reel Thread Type	NPT	Includes Hose	Yes
Frame Type	Box	Inlet Size	1 Inch
Overall Width	16.54 Inch	Recommended Fluid Type	Air;Water
Overall Height	26.13 Inch	Outlet Size	3/4 Inch
Color	Metallic Blue	Inlet Thread Type	NPT
Model	XD	Overall Length	26.4 Inch
Dry Weight	116 lb	Hose Length	75 ft
Recommended Environment	Indoor;Outdoor
