*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

24R424

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24R424

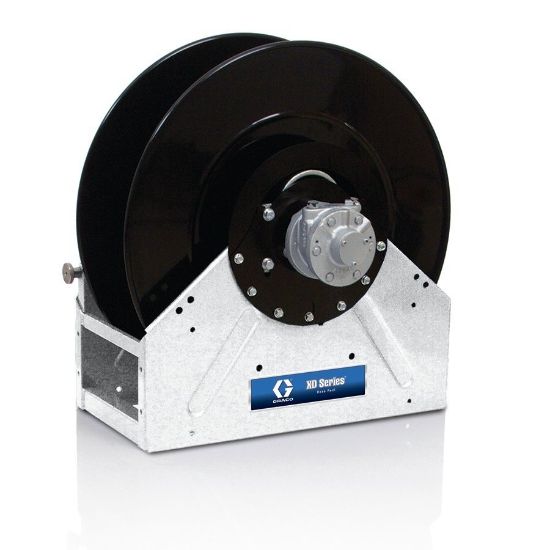

The innovative design of the XD60, XD70 and XD80 Series Powered Hose Reel family is packed with features to help you work safer, smarter and faster. The direct-drive motor options include hydraulic, pneumatic and electric for air, water, petroleum- and synthetic-based oil, grease, diesel fuel dispense and waste oil evacuation applications.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure	3000 PSI
Rated Power	0.5 HP	Bare Reel	1
Series	60	Reel Thread Type	NPT
Overall Width	21.6 Inch	Inlet Size	1 Inch
Rating Current	53 A	Dry Weight	134 lb
Inlet Thread Type	NPT	Frame Type	Box
Recommended Fluid Type	Oil;Grease	Inlet Thread Gender	Female
Outlet Thread Gender	Female	Hose Length	50 ft
Overall Length	26 Inch	Outlet Size	1 Inch
Maximum Temperature	180 deg F	Color	White
Operating Voltage	12 VDC	Minimum Temperature	-40 deg F
Recommended Environment	Indoor;Outdoor	Model	XD
Overall Height	26.1 Inch	Rated Speed	650 RPM
Outlet Thread Type	NPT
