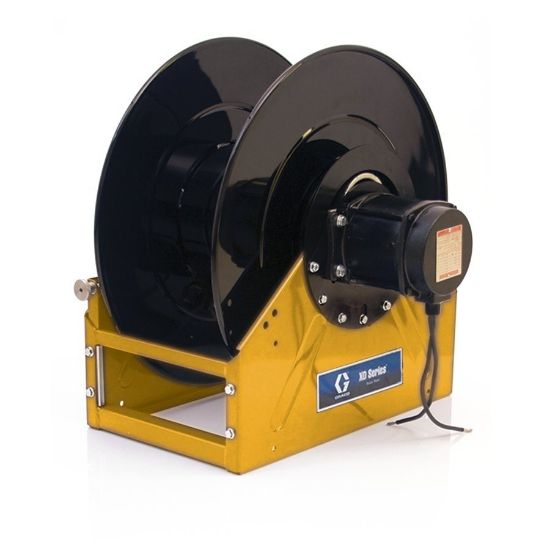

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

24R441

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24R441

The innovative design of the XD60, XD70 and XD80 Series Powered Hose Reel family is packed with features to help you work safer, smarter and faster. The direct-drive motor options include hydraulic, pneumatic and electric for air, water, petroleum- and synthetic-based oil, grease, diesel fuel dispense and waste oil evacuation applications.

Products specifications

Attribute name	Attribute value
UOM	EA	Rated Power	0.67 HP
Bare Reel	1	Reel Thread Type	NPT
Maximum Working Pressure	600 psi	Series	70
Rated Speed	500 RPM	Rating Current	38 A
Recommended Fluid Type	Air;Water;Diesel Fuel	Dry Weight	132 lb
Inlet Thread Type	NPT	Frame Type	Box
Inlet Thread Gender	Female	Overall Height	26.1 Inch
Outlet Size	1 Inch	Maximum Temperature	180 deg F
Outlet Thread Gender	Female	Overall Length	26 Inch
Overall Width	24.1 Inch	Minimum Temperature	-40 deg F
Recommended Environment	Indoor;Outdoor	Outlet Thread Type	NPT
Color	Yellow	Hose Length	100 ft
Model	XD	Inlet Size	1 Inch
Operating Voltage	24 VDC
