24R577

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24R577

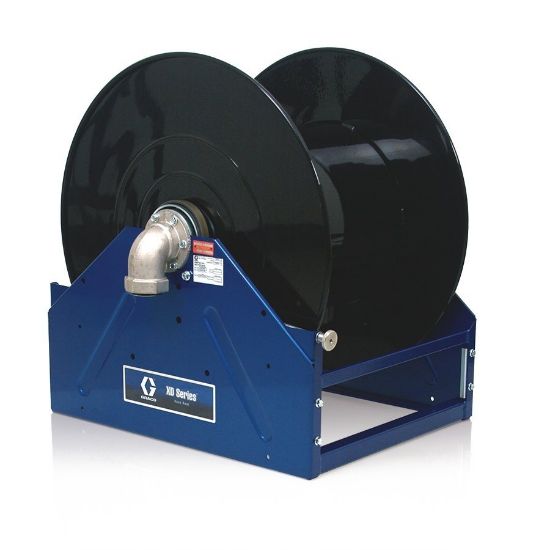

The innovative design of the XD60, XD70 and XD80 Series Powered Hose Reel family is packed with features to help you work safer, smarter and faster. The direct-drive motor options include hydraulic, pneumatic and electric for air, water, petroleum- and synthetic-based oil, grease, diesel fuel dispense and waste oil evacuation applications.

Products specifications

Attribute name	Attribute value
UOM	EA	Reel Thread Type	NPT
Series	80	Bare Reel	1
Maximum Working Pressure	100 PSI	Recommended Environment	Indoor;Outdoor
Outlet Size	2 Inch	Color	Yellow
Outlet Thread Type	NPT	Model	XD
Recommended Fluid Type	Diesel Fuel	Overall Height	30.1 Inch
Minimum Temperature	-40 deg F	Inlet Size	2 Inch
Overall Width	31.9 Inch	Maximum Temperature	140 deg F
Dry Weight	169 lb	Frame Type	Box
Inlet Thread Gender	Female	Hose Length	50 ft
Outlet Thread Gender	Female	Inlet Thread Type	NPT
Overall Length	30.4 Inch
