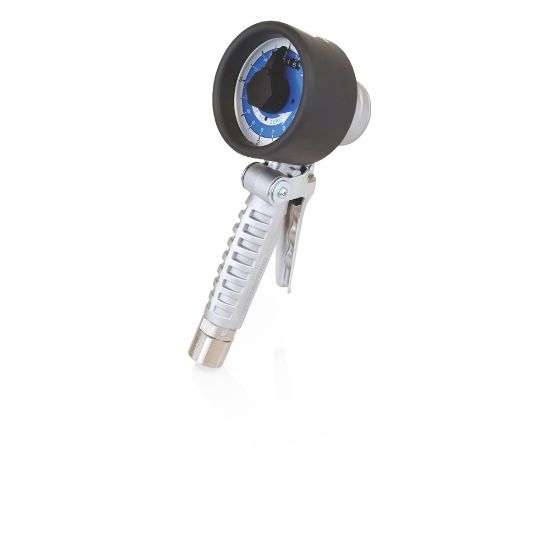

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

24U956

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24U956

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Flow Rate	8 GPM
Maximum Working Pressure	103.4 bar; 1500 psi	Meter Accuracy	±1% %
Minimum Operating Temperature	-50 deg F	Trigger Lock	Locking
Inlet Size	1/2 Inch	Compatible Material	Oil;Antifreeze
Metering Gun Weight	3.42 lb	Outlet Thread Type	ORB
Outlet Size	0.75 Inch	Inlet Thread Type	NPT
Meter Pressure Loss	2 Bar; 30 psi	Display Type	Mechanical
Extension Type	Bare	Dispense Type	Manual
Recommended Environment	Indoor;Outdoor	Maximum Operating Temperature	160 °F
