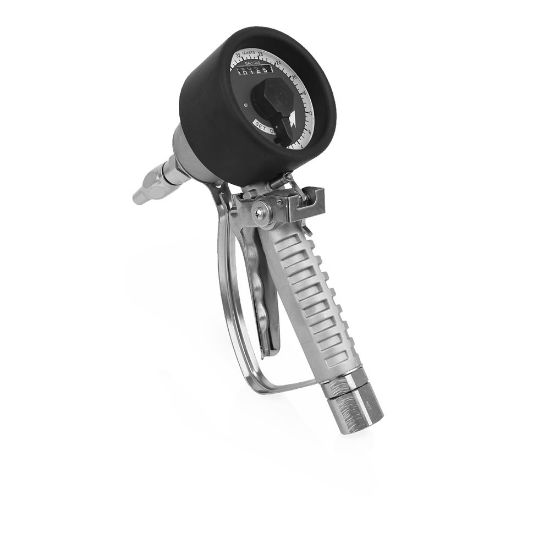

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

24V052

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24V052

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Flow Rate	8 GPM
Maximum Working Pressure	103.4 bar; 1500 psi	Metering Gun Weight	3.5 lb
Minimum Operating Temperature	-50 deg F	Trigger Lock	Locking
Meter Accuracy	±1% %	Inlet Thread Type	NPT
Outlet Thread Type	ORB	Compatible Material	Oil;Antifreeze
Outlet Size	0.75 Inch	Extension Type	Rigid
Display Type	Mechanical	Inlet Size	1/2 Inch
Recommended Environment	Indoor;Outdoor	Dispense Type	Preset
Maximum Operating Temperature	160 °F	Meter Pressure Loss	2 Bar; 30 psi
Nozzle Type	Manual
