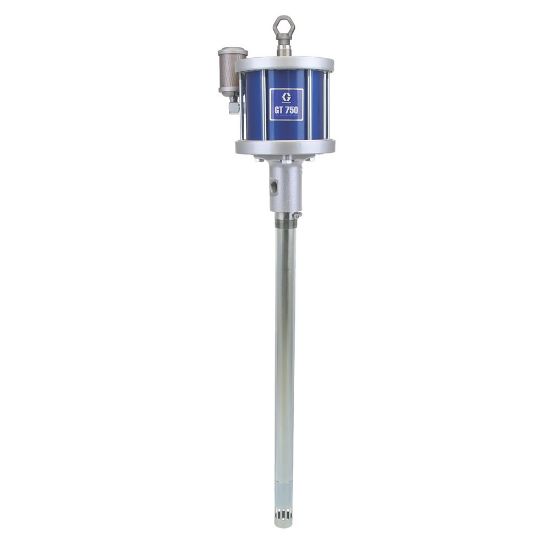

24W337

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24W337

Products specifications

Attribute name	Attribute value
Maximum Working Pressure	3600 psi	Weight	59 lb
Fluid Outlet Size	1 Inch	Sound Power Level	77.2 dB(A)
Fluid Outlet Thread Type	NPT	Maximum Air Inlet Pressure	100 psi
Air Inlet Thread Gender	Female	Air Inlet Thread Type	NPT
Fluid Inlet Type	NPT	Fluid Inlet Thread Type	NPT
Model	GT 750	Pump Ratio	36:1
Maximum Continuous Cycle Rate	60 CPM	Fluid Outlet Thread Gender	Female
Air Motor Effective Diameter	7.5 Inch	Sound Pressure Level	70.5 dB(A)
Maximum Air Consumption	130 SCFM	Air Inlet Size	0.5 Inch
Output Per Cycle	180 Cubic cm
