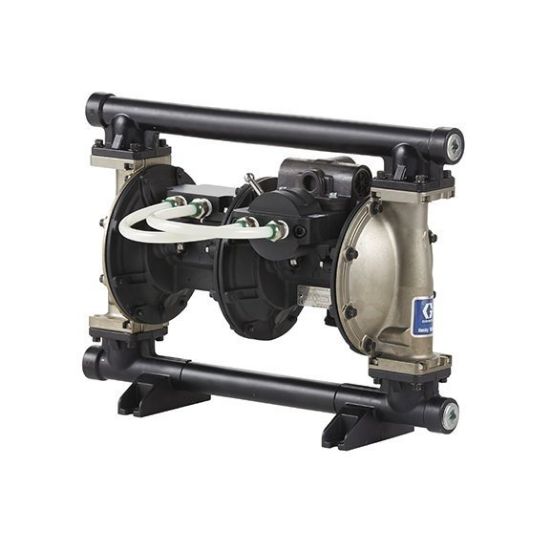

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

24W758

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24W758

Products specifications

Attribute name	Attribute value
Type	Pneumatic	Ball Material	Santoprene
Maximum Flow Rate	50 GPM	Connection Type	Threaded
Series	1050HP	Material	Stainless Steel
Air Exhaust Port Thread Gender	Female	Fluid Inlet Thread Gender	Female
Air Inlet Thread Type	NPT	Diaphragm Compatible Material	Santoprene
Center Section Material	Aluminum	Air Inlet Thread Gender	Female
Air Exhaust Port Size	3/4 Inch	Model	Husky
Air Inlet Size	3/4 Inch	Maximum Cycle Rate	140 CPM
Air Exhaust Port Thread Type	NPT	Fluid Outlet Thread Type	NPT
Pump Ratio	2:1	Manifold Configuration	End Port
Maximum Air Consumption	95 SCFM	Fluid Outlet Size	1 Inch
Fluid Outlet Thread Gender	Female	Maximum Solid Size	0.125 Inch
Fluid Inlet Thread Type	NPT	Diaphragm Material	Santoprene
Fluid Inlet Size	1 Inch
