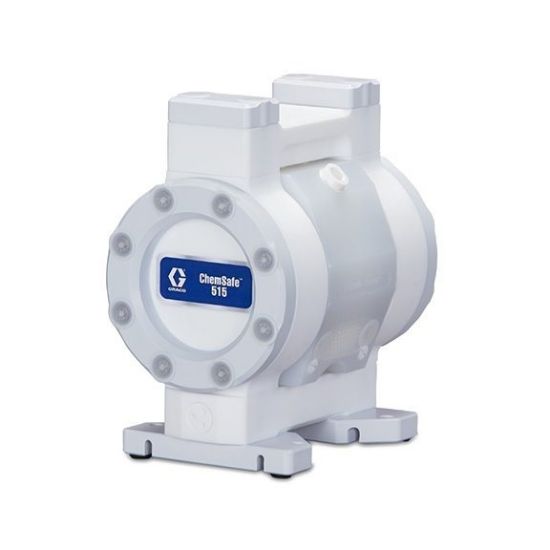

24X425

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24X425

Products specifications

Attribute name	Attribute value
Type	Pneumatic	Maximum Flow Rate	16 GPM
Series	515	Connection Type	Threaded
Material	PTFE	Fluid Outlet Thread Gender	Female
Fluid Outlet Size	1/2 Inch	Maximum Solid Size	0.16 Inch
Fluid Inlet Thread Type	NPT	Maximum Storage Temperature	80 deg F
Fluid Inlet Thread Gender	Female	Model	ChemSafe
Fluid Outlet Thread Type	NPT	Maximum Operating Temperature	212 deg F
Minimum Operating Temperature	32 deg F	Air Inlet Thread Type	NPT
Fluid Inlet Size	1/2 Inch	Maximum Air Consumption	29 SCFM
Air Inlet Thread Gender	Female	Air Inlet Size	1/4 Inch
Center Section Material	Polypropylene	Minimum Storage Temperature	60 deg F
Maximum Cycle Rate	381 CPM	Manifold Configuration	Center Port
