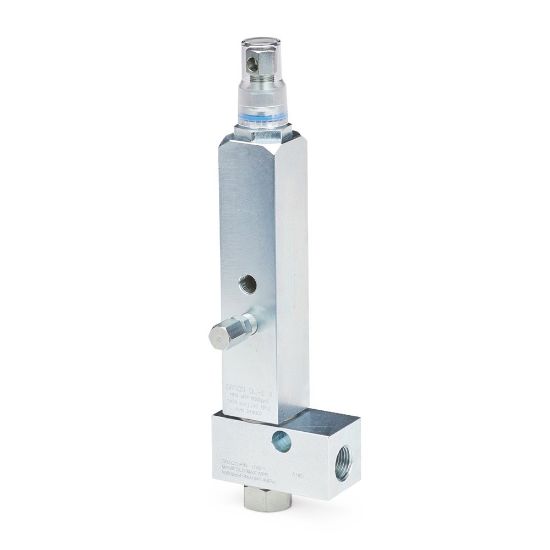

24X801

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24X801

$228.48/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Output Volume	0.08 Cubic Inch
Series	X	Dispense Outlet Thread Type	NPT
Maximum Working Pressure	414 bar; 6000 psi	Dispense Outlet Size	0.13 Inch
Adjustable	Yes	Minimum Output Volume	0.015 Cubic Inch
Model	GL-1	Minimum Operating Pressure	1850 psi
Outlet Thread Type	NPT	Outlet Size	3/8 Inch
Maximum Operating Pressure	6000 psi	Cycle Indicator	Visual
Inlet Thread Type	NPT	Inlet Size	3/8 Inch
Compatible Material	Grease	Maximum NLGI Grade	#2
Maximum Reset Pressure	1000 psi	Compatible Metering Device	Single Line Parallel
