*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

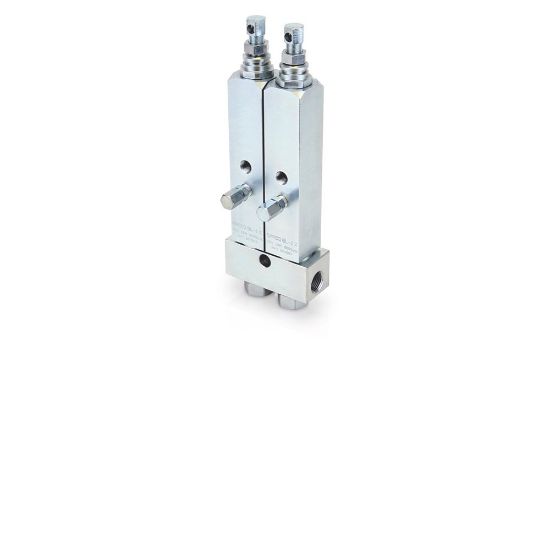

24X802

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24X802

$338.20/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Dispense Outlet Size	0.13 Inch
Maximum Working Pressure	414 bar; 6000 psi	Adjustable	Yes
Dispense Outlet Thread Type	NPT	Series	X
Maximum Output Volume	0.08 Cubic Inch	Cycle Indicator	Visual
Inlet Size	3/8 Inch	Compatible Metering Device	Single Line Parallel
Maximum Reset Pressure	1000 psi	Maximum Operating Pressure	6000 psi
Minimum Operating Pressure	1850 psi	Minimum Output Volume	0.015 Cubic Inch
Inlet Thread Type	NPT	Maximum NLGI Grade	#2
Compatible Material	Grease	Outlet Thread Type	NPT
Model	GL-1	Outlet Size	3/8 Inch
