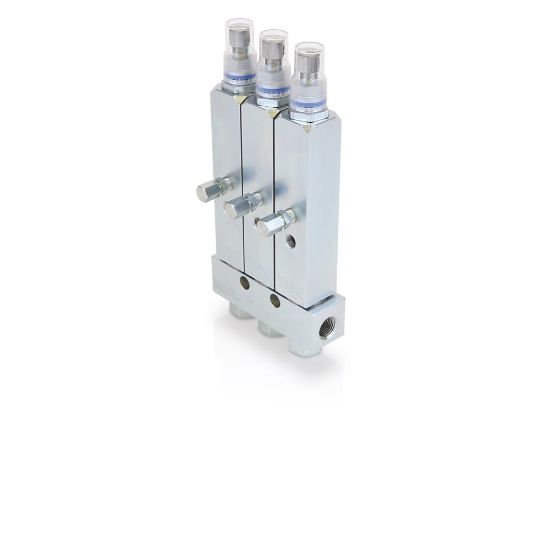

24X803

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24X803

$434.15/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Output Volume	0.08 Cubic Inch
Series	X	Adjustable	Yes
Suggested Operating Pressure	2500 psi	Dispense Outlet Thread Type	NPT
Maximum Working Pressure	414 bar; 6000 psi	Dispense Outlet Size	0.13 Inch
Inlet Thread Type	NPT	Compatible Material	Grease
Maximum Reset Pressure	1000 psi	Maximum NLGI Grade	#2
Inlet Size	3/8 Inch	Outlet Thread Type	NPT
Outlet Size	3/8 Inch	Minimum Output Volume	0.015 Cubic Inch
Minimum Operating Pressure	1850 psi	Model	GL-1
Compatible Metering Device	Single Line Parallel	Cycle Indicator	Visual
Maximum Operating Pressure	6000 psi
