*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

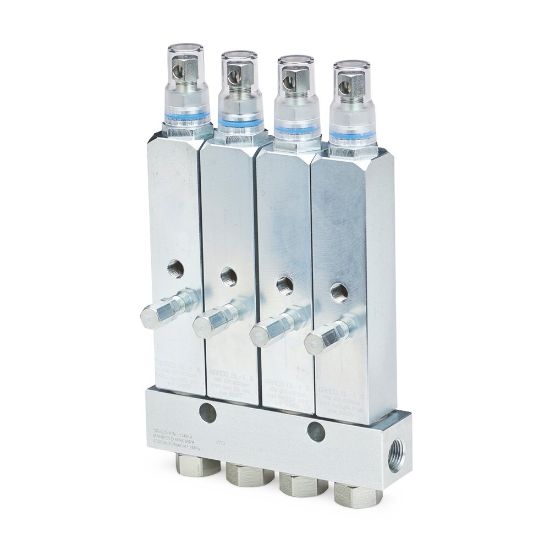

24X804

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24X804

$570.00/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Dispense Outlet Thread Type	NPT
Dispense Outlet Size	0.13 Inch	Suggested Operating Pressure	2500 psi
Maximum Working Pressure	414 bar; 6000 psi	Adjustable	Yes
Maximum Output Volume	0.08 Cubic Inch	Series	X
Outlet Thread Type	NPT	Maximum Operating Pressure	6000 psi
Cycle Indicator	Visual	Inlet Thread Type	NPT
Inlet Size	3/8 Inch	Compatible Material	Grease
Maximum NLGI Grade	#2	Maximum Reset Pressure	1000 psi
Compatible Metering Device	Single Line Parallel	Outlet Size	3/8 Inch
Minimum Output Volume	0.015 Cubic Inch	Model	GL-1
Minimum Operating Pressure	1850 psi
