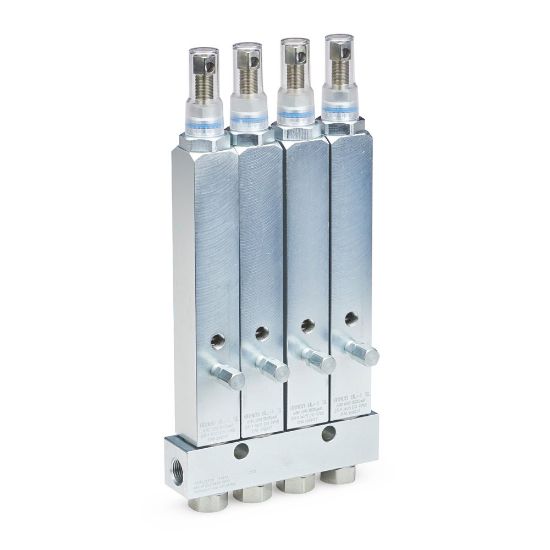

24X814

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24X814

$1,045.00/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Dispense Outlet Thread Type	NPT
Maximum Working Pressure	414 bar; 6000 psi	Dispense Outlet Size	0.13 Inch
Maximum Output Volume	0.315 Cubic Inch	Adjustable	Yes
Series	XL	Outlet Size	3/8 Inch
Outlet Thread Type	NPT	Maximum Operating Pressure	6000 psi
Cycle Indicator	Visual	Minimum Output Volume	0.035 Cubic Inch
Inlet Size	3/8 Inch	Compatible Material	Grease
Maximum NLGI Grade	#2	Maximum Reset Pressure	1000 psi
Compatible Metering Device	Single Line Parallel	Model	GL-1
Minimum Operating Pressure	1850 psi	Inlet Thread Type	NPT
