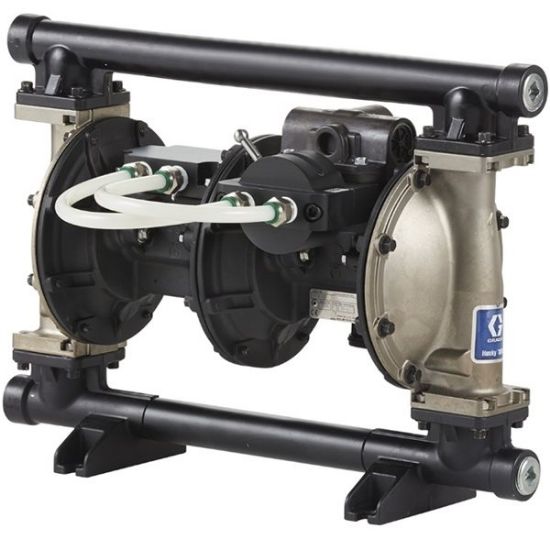

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

24Y183

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24Y183

Products specifications

Attribute name	Attribute value
Material	Aluminum	Type	Pneumatic
Connection Type	Threaded	Series	1050HP
Maximum Flow Rate	50 GPM	Ball Material	Acetal
Seat Material	Stainless Steel	Air Exhaust Port Thread Gender	Female
Fluid Inlet Thread Gender	Female	Diaphragm Compatible Material	PTFE
Air Inlet Thread Type	NPT	Air Inlet Thread Gender	Female
Air Exhaust Port Size	3/4 Inch	Model	Husky
Air Inlet Size	3/4 Inch	Maximum Cycle Rate	140 CPM
Air Exhaust Port Thread Type	NPT	Pump Ratio	2:1
Fluid Outlet Thread Type	NPT	Manifold Configuration	End Port
Maximum Air Consumption	95 SCFM	Fluid Outlet Size	1 Inch
Diaphragm Material	PTFE/EPDM 2-Piece	Fluid Outlet Thread Gender	Female
Maximum Solid Size	0.125 Inch	Fluid Inlet Thread Type	NPT
Fluid Inlet Size	1 Inch
