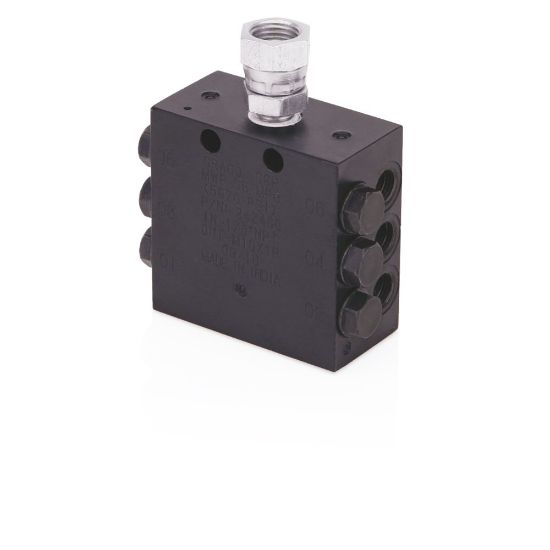

Compact Series Progressive (CSP) valve with broad market versatility. Combine with field-proven G-Series pumps for a complete system solution.

Features

1/8 inch BSPP inlet
Space efficient design with 22 outlets, without indicator
Outlets can be combined to meet larger bearing needs
Built-in durability with Zinc Iron plating to stand up to harsh environments
High output pressure - maximum working pressure of 5,076 psi (350 bar) for both oil and grease

Products specifications

Attribute name	Attribute value
UOM	EA	Series	CSP
Maximum Working Pressure	5076 PSI	Outlet Thread Gender	Female
Divider Valve Series	CSP	No. of Outlets	22
Minimum Output Volume	0.2 cm3	Inlet Size	1/8 Inch
Minimum Working Pressure	217.5 PSI	Inlet Thread Type	BSPP
Outlet Thread Type	BSPP	Compatible Material	Oil, Grease
NLGI Grade	#2	Maximum Operating Temperature	212 °F
