*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

24Z492

Name: 24Z492
SKU: 24Z492
Price: 415.15 USD
Availability: LimitedAvailability

Availability:

1 Limited Stock

Kansas City, KS

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 24Z492

$415.15/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

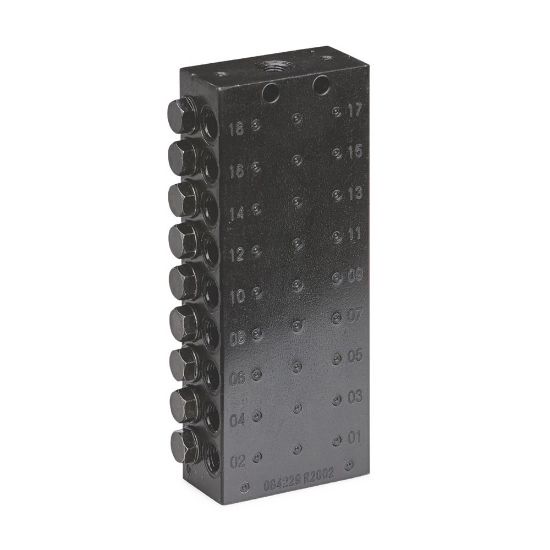

Compact Series Progressive (CSP) valve with broad market versatility. Combine with field-proven G-Series pumps for a complete system solution.

Features

1/8 inch NPT inlet
Space efficient design with 18 outlets, without indicator
Outlets can be combined to meet larger bearing needs
Built-in durability with Zinc Iron plating to stand up to harsh environments
High output pressure - maximum working pressure of 5,076 psi (350 bar) for both oil and grease

Products specifications

Attribute name	Attribute value
UOM	EA	Series	CSP
Maximum Working Pressure	5076 PSI	Outlet Thread Gender	Female
Divider Valve Series	CSP	Minimum Output Volume	0.2 cm3
Inlet Size	0.125 Inch	Inlet Thread Type	NPT
Minimum Outlet Size	M10	No. of Outlets	18
Maximum Operating Temperature	212 °F	Minimum Working Pressure	217.5 PSI
Compatible Material	Oil, Grease	NLGI Grade	#2
