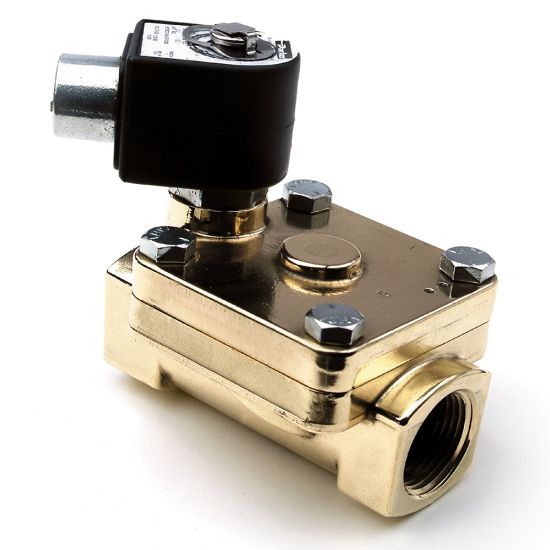

16FS5C2364ACF4C05 - 25 & S5 Series - Water, Hot Water, & Steam Valves

Parker Fluid Control Division has a long history in manufacturing industry-leading steam and hot water valves. Robust and debris-tolerant internals, stainless steel seat, and integrated strainer facilitate long life and overall system health.

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU 16FS5C2364ACF4C05

$519.30/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	EPDM
Body Material	BRASS	Port Type	NPT
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Function	Normally Closed
Input Voltage	120/60, 110/50	Actuation Type	Internally Piloted
Power Consumption	11.0	Ingress Protection Rating	NEMA 4,4X
Media	Water, Hot Water, Steam	Installation	IOM 7320
Specifications Met	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC	Maximum Ambient Temperature	131.0
Minimum Pressure Differential	1.0	Valve Type	2 Way
Maximum Steam Pressure	50	Maximum Fluid Temperature	300.0
Port Size	1.0	Orifice Size	1.0
Main Flow Coefficient	12.2	Preventive Maintenance Kit	16FS5C2364ACFR
Maximum Pressure Differential	150	Port Type	NPT
Body Material	Brass	Function	Normally Closed (NC)
Valve Type	2-Way	Seal Material	EPDM
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Maximum Pressure Differential	150.0 psi
Media	Steam	Installation	IOM 7320
Actuation Type	Internal Pilot	Power Consumption	11 W
Ingress Protection Rating	NEMA 4	Maximum Fluid Temperature	300 °F
Maximum Ambient Temperature	131 °F	Minimum Pressure Differential	1.0 psi
Maximum Steam Pressure	50 psi	Input Voltage	120/60 VAC
Port Size	1.0 inch	Orifice Size	1.0 inch
Main Flow Coefficient	12.2 Cv	Specifications Met	CE - Low Voltage
Preventive Maintenance Kit	16FS5C2364ACFR
