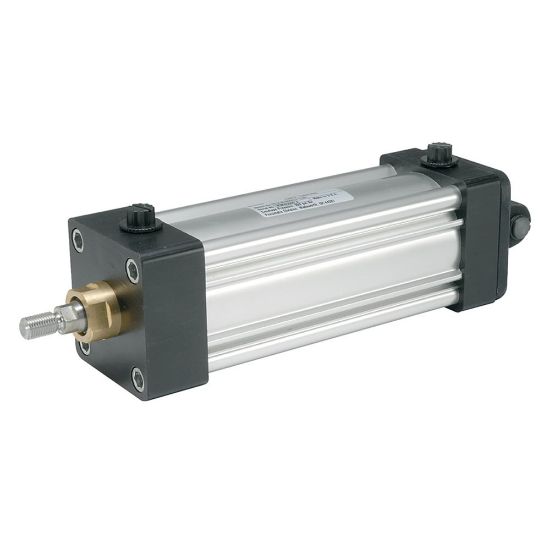

2.50CJ4MA3U14AC18.00

Manufacturer: Parker Hannifin

Availability:	Backordered
Partner Available:	Backordered

SKU 2.50CJ4MA3U14AC18.00

$406.28/each

Products specifications

Attribute name	Attribute value
UOM	EA	Piston Material	Aluminum
Lube Specification	Non Lube Design	Style	Tie Rod, NFPA
Corrosion Resistant	Yes	Port Size	3/8 Inch
Filtration Required	40 micron	Stroke Length	18 Inch
Material	Clear Anodized Aluminum Alloy	Series	4MA
Max. Temperature Range	165 °F	Mounting Style Code	J
Seal Type	Lipseal	Cushions	Cushioned, Both Ends
Rod Diameter	5/8 Inch	Min. Temperature Range	-10 °F
Piston No.	1	Rod End Thread	7/16-20
Seal Material	Nitrile	Filter Media	Filtered Air
Rod End Style	Male, Small	Bore Size	2 1/2 Inch
Rod Material	Case Hardened, Chrome-Plated Carbon Steel	Mounting Style	MF1
End Type	Single Rod	Port Type	NPTF
Bumpers	w/o Bumpers	Magnetic Ring	Yes
Max. Pressure	250 psig	Rod Thread Type	UNF
