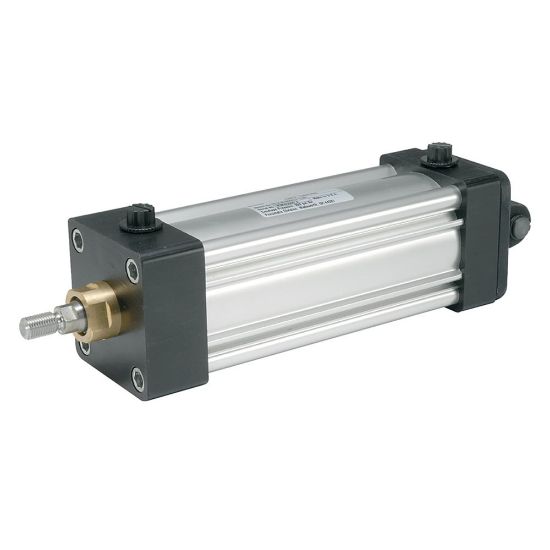

2.50CTEF4MA2U34A14.00

Manufacturer: Parker Hannifin

Availability:	Backordered Estimated Lead Time: 8 days
Partner Available:	Backordered

SKU 2.50CTEF4MA2U34A14.00

$380.75/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Series	4MA
Material	Clear Anodized Aluminum Alloy	Filtration Required	40 micron
Piston Material	Aluminum	Lube Specification	Non Lube Design
Style	Tie Rod, NFPA	Corrosion Resistant	Yes
Port Size	3/8 Inch	Stroke Length	14 Inch
Rod Thread Type	UNF	Rod End Style	Male, Small
Bumpers	w/o Bumpers	Rod Diameter	1 Inch
Filter Media	Filtered Air	Seal Type	Lipseal
Max. Temperature Range	165 °F	Max. Pressure	250 psig
Mounting Style	MS4 - MX5	Cushions	Cushioned, Head End
Magnetic Ring	No	Piston No.	3
End Type	Single Rod	Mounting Style Code	TEF
Rod Material	Case Hardened, Chrome-Plated Carbon Steel	Port Type	NPTF
Seal Material	Nitrile	Min. Temperature Range	-10 °F
Bore Size	2 1/2 Inch	Rod End Thread	3/4-16
